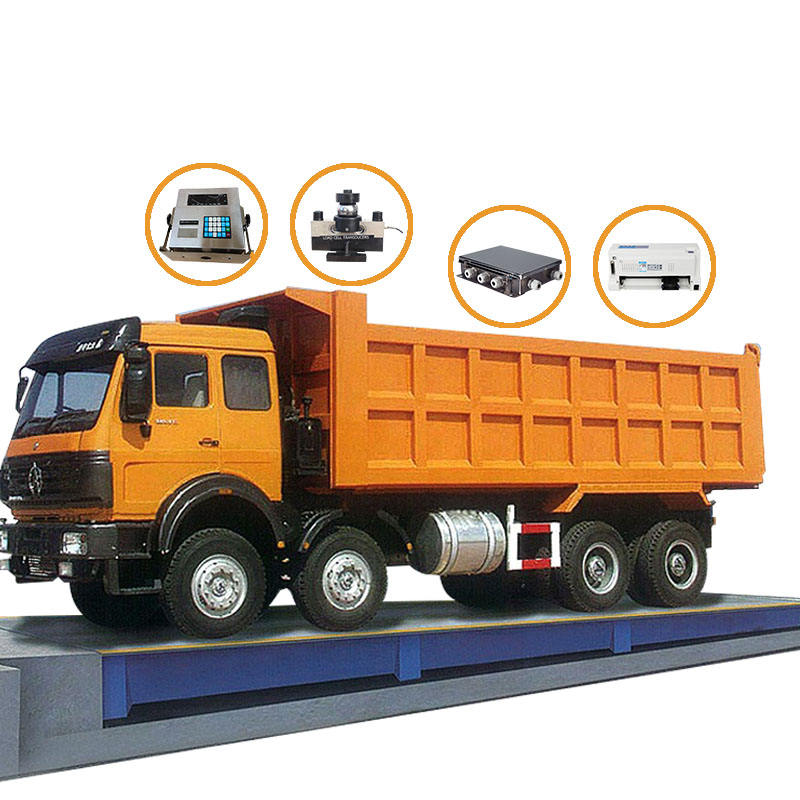

3×16m Spanish Truck Scale – 80-100 Ton

BD Scale 3m × 16m Spanish Series is the elite-tier weighing solution for high-traffic industrial ports and logistics hubs in Bangladesh. While standard 16-meter scales are often chosen for 40ft containers, the Spanish-engineered model distinguishes itself through European-standard orthotropic deck technology. This design, common in modern bridge construction, uses a continuous-welded closed-rib geometry that prevents the platform from “oil-canning” or structural fatigue, even after decades of high-intensity use with 100-ton loads.

Fabricated from high-tensile European steel, the platform undergoes a superior finishing process: SA 2.5 grade sandblasting followed by a high-build C5-I marine-grade anti-corrosive coating. This makes it exceptionally resilient against the corrosive, high-humidity environments of coastal areas like Chattogram and Mongla. Integrated with IP69K-rated stainless steel digital load cells (utilizing premium brands like Utilcell or Giropes), this weighbridge remains 100% accurate even during heavy monsoon floods or high-pressure cleaning.

Technical Specifications

Key Performance Highlights

• Orthotropic Rib Technology: Unlike standard U-beams, the Spanish-style ribbed deck is continuously welded to the top plate, creating a structure that resists fatigue cracks and buckling under repeated heavy axle cycles.

• Hermetic IP69K Electronics: Laser-welded stainless steel load cells are rated to survive high-pressure water jets and total submersion—essential for the unpredictable Bangladeshi monsoon seasons.

• Maintenance-Free Ribs: Each rib is completely sealed to prevent internal corrosion; once the initial oxygen is used, the rusting process stops permanently from the inside out.

• Low-Profile Design: Its compact vertical height reduces the depth of pit excavations or the length of ramps required for surface mounting, saving on civil construction costs.

• Digital Transparency: Advanced diagnostics allow for remote monitoring of each individual load cell, identifying potential issues before they cause downtime.

Ideal Applications

• Inland Container Depots (ICD): High-frequency weighing of 40ft export/import container trailers.

• Chemical & Fertilizer Plants: Where aggressive environments require premium anti-corrosive protection.

• 24/7 Steel & Cement Mills: Designed for non-stop operations with the heaviest axle impacts (billets, coils, and bulk cement).

• Elite Logistics Hubs: For organizations that prioritize the lowest Total Cost of Ownership (TCO) over a 20+ year lifespan.
