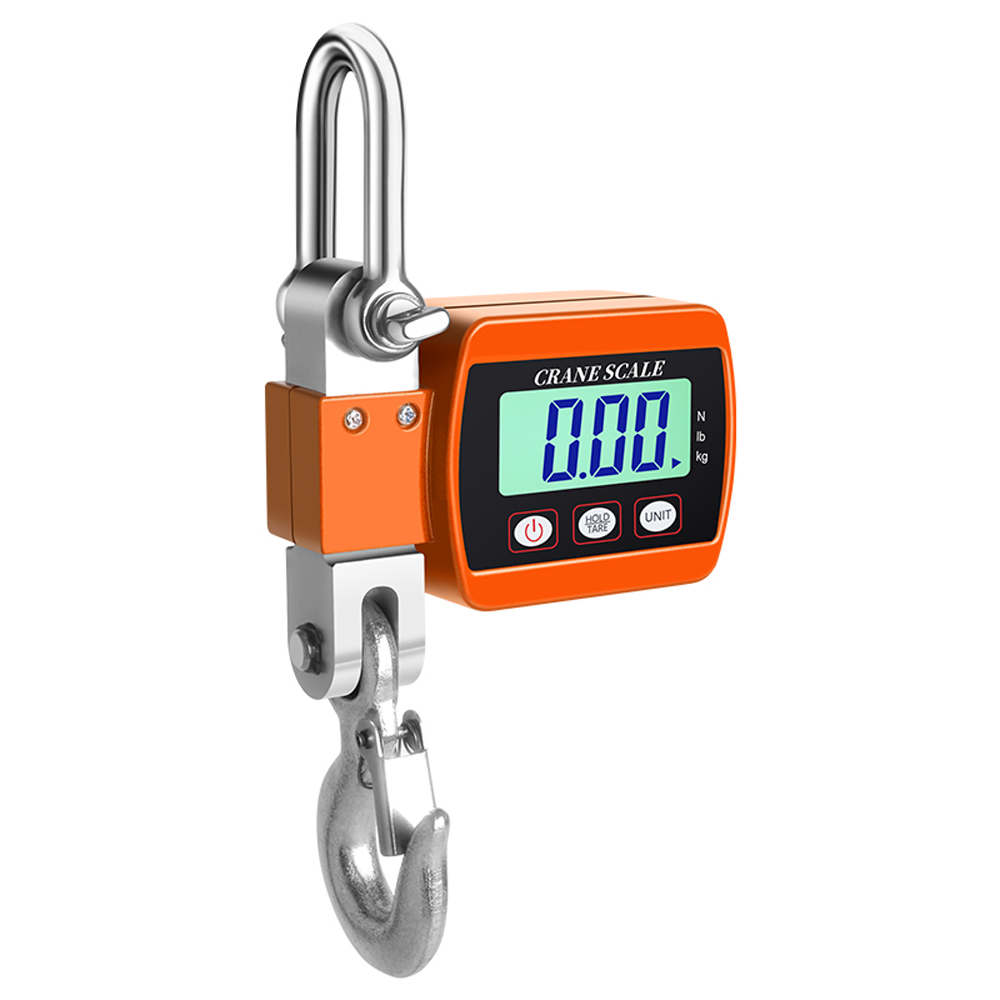

5 Ton Crane Scale
5 Ton Industrial Crane Scale is a heavy-duty 5000 kg hanging scale featuring a rugged aluminum alloy housing and OIML III accuracy. Equipped with a wireless remote control, 360° safety swivel hook, and an ultra-bright LED display, it ensures stable and precise weighing for massive industrial loads. With a 60–80 hour battery life and advanced overload protection, it is the premier choice for steel mills, ports, and construction yards across Bangladesh.
BD Scale 5 Ton Digital Crane Scale is a professional-grade hanging scale engineered for the heaviest lifting operations in Bangladesh. Ideally suited for 10-ton overhead cranes and mobile gantry systems, this 5000 kg scale is the industry standard for weighing heavy machinery, large steel beams, and shipping containers. It features a high-precision alloy steel load cell housed within a shock-resistant cast aluminum or forged steel body, providing a safe and reliable solution for industrial environments.
Paired with a high-capacity shackle and 360° swivel hook, the 5-ton series is designed to withstand the dynamic forces of moving loads. For maximum operational efficiency, it includes a long-range infrared remote control, allowing ground staff to manage the scale from a safe distance. The high-visibility 30mm–40mm LED display ensures that weight readings are easily legible even in the dusty or dimly lit conditions of ship-breaking yards and steel foundries.
Technical Specifications
| Feature | Details / Specification |
| Maximum Capacity | 5000 kg (5 Ton) |
| Accuracy / Division | 2.0 kg (Standard) / 1.0 kg (High Precision) |
| Accuracy Class | OIML R76 Class III |
| Display | 5-Digit, 30mm–40mm High-Brightness Red LED |
| Housing Material | Impact-Resistant Die-Cast Aluminum Alloy |
| Support Hardware | High-Tension Shackle & American Standard Swivel Hook |
| Remote Control | Infrared Wireless (10m – 20m Range) |
| Power Supply | 6V/4.5Ah or 6V/10Ah Rechargeable Battery |
| Operating Time | 60 – 100 Hours (depending on battery model) |
| Safe Overload | 120% – 150% F.S. (6 to 7.5 Ton) |
| Ultimate Overload | 400% F.S. (20 Ton) |
Key Performance Highlights
-
Jitter Compensation Technology: Specialized circuitry stabilizes the display reading in under 10 seconds, even if the load is swaying or subject to crane vibrations.
-
Extreme Safety Margin: The load-bearing assembly features a 4:1 safety factor, meaning the structural components can withstand up to 20,000 kg before failing, prioritizing site safety.
-
Digital Calibration: Supports keyboard-based calibration, allowing for quick adjustments without the need for manual resistor trimming.
-
Auto-Power Management: Includes an intelligent “Sleep” function and auto-off timer to prolong battery health during long shifts in manufacturing plants.
-
Peak Hold Function: Capable of capturing and “freezing” the maximum weight reached during a lift—useful for tensile testing and logistics verification.
Ideal Applications
-
Steel Mills & Foundries: Weighing massive rebar bundles, steel plates, and scrap metal.
-
Ports & Shipping Yards: Managing heavy export cargo and industrial equipment.
-
Ship-Breaking Industry: Weighing heavy engine blocks and salvaged hull sections.
-
Construction & Infrastructure: Monitoring the weight of pre-cast concrete beams and heavy machinery.
-
Heavy Manufacturing: Ideal for assembly lines involving engines, transformers, and large pumps.
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products

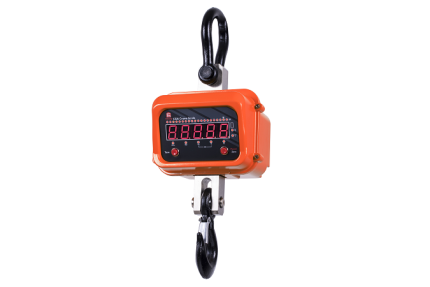

10 Ton Crane Scale
