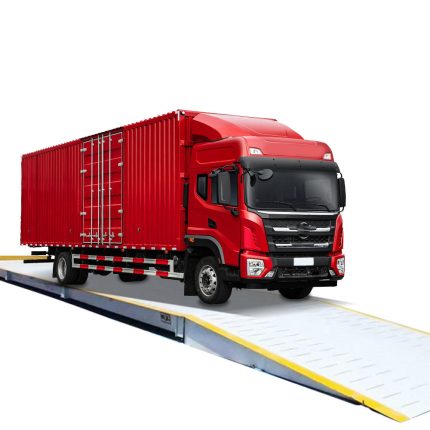

3×9m China Truck Scale – 60 Ton
BD Scale 3x9m China Truck Scale is a high-performance 60 Ton weighbridge featuring a reinforced modular U-beam deck and OIML III accuracy. Equipped with 4 to 6 high-precision IP68 waterproof load cells and the YAOHUA XK3190-A9 indicator, it offers rapid and reliable weighing for industrial vehicles. With built-in lightning protection and comprehensive data logging, it is the most popular value-for-money weighbridge solution in Bangladesh.
BD Scale 3m × 9m China Series is a highly popular, cost-effective weighbridge solution widely utilized across Bangladesh’s industrial sectors. This 9-meter model is specifically engineered to accommodate medium-to-large multi-axle trucks (10-wheelers) and medium rigid trailers. It features a robust modular U-beam structure that provides high torsional rigidity, ensuring the platform remains stable and accurate under heavy daily traffic.
Manufactured using high-quality Q235B carbon steel, the scale body is reinforced with six massive U-shaped beams and a 10mm to 12mm thick checkered top plate. This “China standard” build is famous for its “plug-and-play” installation, ease of maintenance, and compatibility with globally recognized electronics like YAOHUA and Keli. To ensure durability in the local climate, the platform is treated with professional sandblasting and double-layered anti-corrosive painting.
Technical Specifications
| Feature | Details / Specification |
| Maximum Capacity | 60,000 kg (60 Ton) |
| Accuracy (Division) | 10 kg / 20 kg |
| Platform Size | 3.0m (Width) × 9.0m (Length) |
| Main Beam Structure | 6-Piece U-Beam (6mm / 8mm thickness) |
| Deck Plate | 10mm / 12mm High-Tensile Checkered Plate |
| Load Cells | 4 to 6 Units (Analog/Digital) 30T/40T Capacity |
| Indicator | YAOHUA XK3190-A9 / D10 / DS3 |
| Protection Rating | IP68 (Waterproof & Dustproof) |
| Safe Overload | 150% of Rated Capacity |
| Operating Temp | -30°C to +70°C |
Key Performance Highlights
-
10-Wheeler Optimized: The 9-meter length is the perfect “standard” for weighing 3-axle rigid trucks (10-wheelers) in a single pass without any wheel overhang.
-
Rapid Installation: The modular prefabricated sections allow for quick on-site assembly, significantly reducing the downtime at factory gates or sites.
-
Advanced Data Management: The paired A9 indicator supports memory for 1,000+ truck IDs and tare weights, automating the generation of weighing tickets and daily reports.
-
All-Weather Resilience: Utilizing hermetically sealed load cells and a stainless steel junction box, the system remains accurate even if the installation pit experiences seasonal flooding.
-
Anti-Fraud Security: Optional digital communication (via D10/DS3 indicators) provides encrypted signals to prevent external electronic tampering or weight manipulation.
Ideal Applications
-
Rice & Feed Mills: Bulk weighing of grain transport trucks and raw materials.
-
Construction & Bricks: Tracking the weight of sand, stone, and brick delivery trucks.
-
Manufacturing Plants: High-traffic weighing of raw material inputs and finished goods.
-
Logistics Hubs: Managing weights for medium-duty container prime movers and delivery vans.
